Bitvisus 4K60 8 in 9 Out Video Wall Controller Rs232 HDMI/DP Network Web Control 2x2 Video Wall Matrix Controller Features
1,Support 8 inputs, including 4-channels 4K60 (2-channels HDM/DP option),4-channels 1080P60, support 9-channels 1080P60 output. Multi-input andmulti-output to meet a variety of application requirements;Support 1 channels HDMl local display back;
2,Support remote control, RS232, network WEB control, you can log in WEB forcontrol on Windows computer, Apple computer, Pad, mobile phone and otherdevices, easy and flexible to realize the control and selection of input and output ofthe device;
3,Support multi-screen display, you can combine a signal into one screen outputdisplay, you can also display different contents in multiple screens;
4,Support seamless switching of` input signals without black screen or flashingscreen.
5,Built-in output signal enhancement to ensure signal stability and clarity duringlong-distance transmission.
6,Adopt imported industrial-grade chip, 28nm process is stable and reliable, withgood heat dissipation design and protection measures to ensure stable operation fora long time.
Bitvisus 4K60 8 in 9 Out Video Wall Controller Rs232 HDMI/DP Network Web Control 2x2 Video Wall Matrix Controller Product Overview

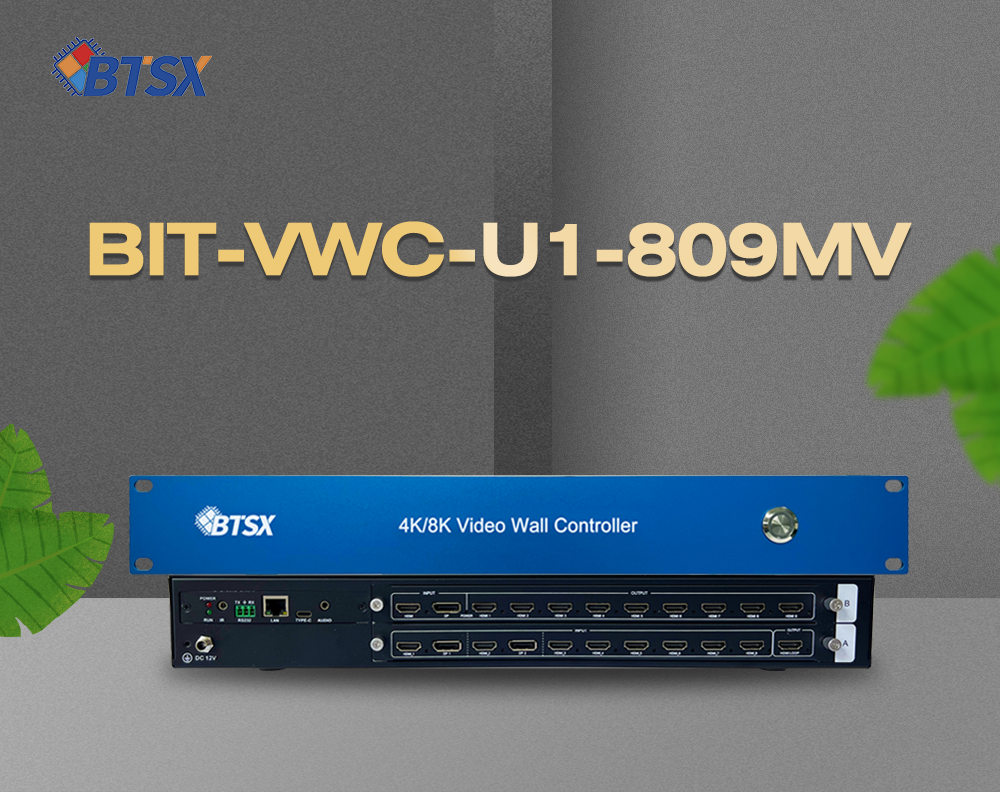

BIT-VWC-U1-809MV is a device specialized in multi-channel video signal processingand switching independently developed and produced by Bitvisus. With 8 input portsand 9 output ports, it can receive signals from 8 different sources and flexiblydistribute them to 9 display devices. Realize the splicing of the large screen, multiplesignals on the wall at the same time, but also seamless matrix real-time switching, andprovide efficient and convenient control of the use, the use of excellent experience.Widely used in video conferencing, multimedia classrooms, command centers,advertisement broadcasting, studios and other scenes.
Bitvisus 4K60 8 in 9 Out Video Wall Controller Rs232 HDMI/DP Network Web Control 2x2 Video Wall Matrix Controller Product Specifification
| Produduct Name | BIT-VWC-U1-809MV |
| Input Maximumum PixelClock Frequency | 600MHz |
| Input Interfaface | ININ1-2:2×HDMI 2.0,2×DP 1.2ININ3-4:2×HDMI 2.0ININ5-8:4×HDMI 1.3 |
| Input Resolution | ININ1-4:3840×2160P60ININ5-8:1920×1080P60 |
| Color depth | 8bit |
| Input color foformrmat | RGB444,YUV444,YUV422,YUV420 |
| Outptput Interfaface | 9×HDMI 1.3,1×HDMI 2.0 |
| Outptput Maximumum PixelClock Frequency | 154MHz |
| Outptput resolution | Remote control, RS232, Network rk interfaface Web |
| Audio | 3.5MM Audio Split |
| Power supupply | 12V5A |
|
|
